Boeing-certified ESD products
Certified for use by Boeing, including Boeing's satellite operations, and listed in Boeing's internal ESD product catalog.

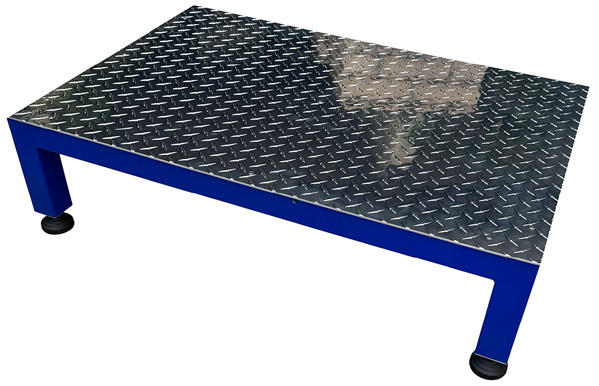

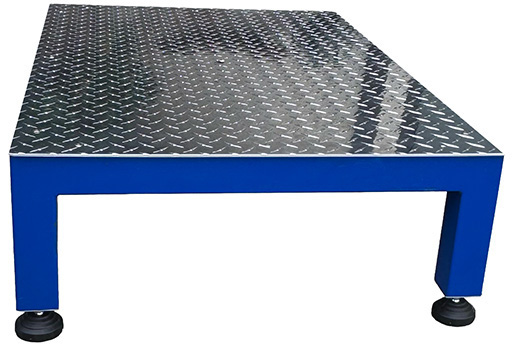

Cable Step CoverFixed Top
ESD-safe step-over for cable bundles in active labs
A rigid, walk-over cover that protects cable bundles and removes trip hazards in ESD-sensitive areas. A diamond-tread aluminum top sits on a powder-coated steel frame with conductive leveling feet that tie into conductive flooring to help control static.
- ESD-aware design. Integrates with conductive flooring to help maintain a controlled resistance-to-ground path.
- Anti-slip tread. Diamond-plate top for confident footing.
- Safety-aware edges. Beveled perimeter reduces hazard points.
- Leveling stability. Conductive technopolymer leveling feet stabilize the unit on uneven floors; field-replaceable.
- High load capacity. 500 lb maximum recommended load, with safety factor.
Technical data
| Part number | 103-100 |
|---|---|
| Dimensions | 36 × 24 × 9.5 in (914 × 610 × 241 mm) |
| Weight | 34 lb (15.4 kg) |
| Top surface | 1/8 in aluminum diamond-tread plate |
| Frame | Powder-coated steel tubing (blue) |
| Frame-to-foot resistance | < 2 Ω |
| Leveling feet | Conductive; surface resistivity 10³ Ω, volume resistivity 10³ Ω·cm (ASTM D991) |
| Max load | 500 lb recommended, with safety factor |
Options & custom variants

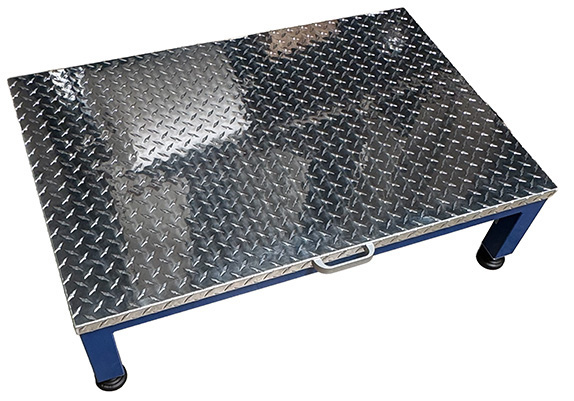

Cable Step CoverOpening Top
Walk over it, or lift the lid for instant cable access

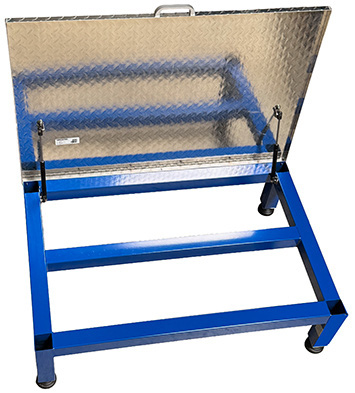

All the protection of the fixed-top cover, with a gas-strut-assisted hinged lid. Lift the top by its handle to route, inspect, or change cables underneath without moving the unit.
- Opening top. Gas-strut hinged lid with handle for fast access to cables.
- ESD-aware design. Integrates with conductive flooring to help maintain a controlled resistance-to-ground path.
- Anti-slip tread. Diamond-plate top for confident footing.
- Safety-aware edges. Folded perimeter reduces hazard points.
- Leveling stability. Conductive technopolymer leveling feet stabilize the unit on uneven floors; field-replaceable.
Technical data
| Part number | 101-100 |
|---|---|
| Dimensions | 24 × 36 × 9.5 in (610 × 914 × 241 mm) |
| Weight | 29 lb (13.2 kg) |
| Top surface | 1/16 in aluminum diamond-tread plate |
| Mechanism | Gas strut |
| Frame | Powder-coated steel tubing (blue) |
| Frame-to-foot resistance | < 2 Ω |
| Leveling feet | Conductive; surface resistivity 10³ Ω, volume resistivity 10³ Ω·cm (ASTM D991) |
| Max load | 312 lb recommended, with safety factor |
Options & custom variants

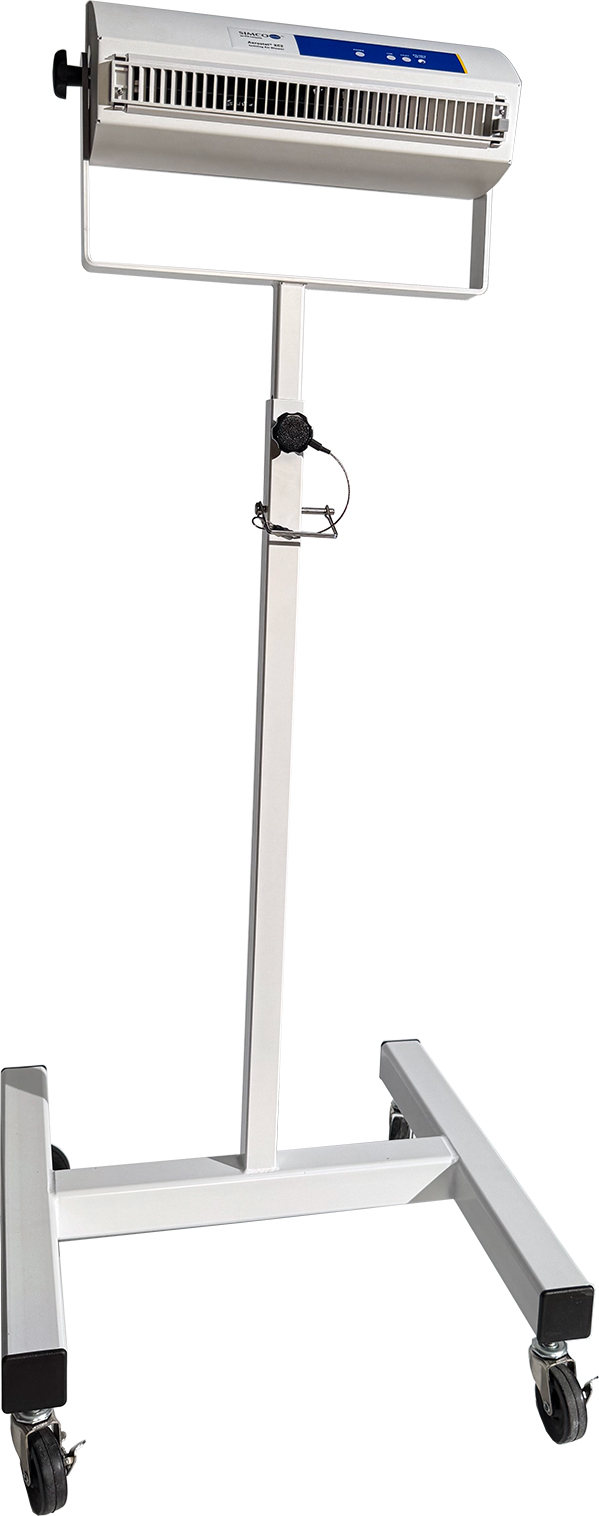

Ionizer Stand
Mobile, ESD-safe stand for overhead blower ionizers
A mobile stand that puts an ionizer exactly where it is needed. Designed for the Simco Aerostat® XC2 and other compatible ionizers, with a telescoping column, 360° rotating mount, and conductive casters that keep it ESD-safe as it moves.
- Adjustable height. Telescoping column from 42 to 66 in, in 2 in increments.
- 360° rotation. Rotating mount aims airflow exactly where it is needed.
- Secure height lock. Tethered clevis pin and nylon-tipped knob.
- ESD-safe mobility. Conductive casters (2 locking, 2 non-locking) for controlled movement on ESD flooring.
- Stable base. Low center of gravity minimizes tip risk; powder-coated steel resists corrosion and wear.
Technical data
| Part number | 102-101 |
|---|---|
| Base dimensions | 20 × 19 in (508 × 483 mm) |
| Height range | 42–66 in (1066–1676 mm) at ionizer mount, 2 in increments |
| Frame | Powder-coated steel tubing (white) |
| Weight | 29 lb (13.2 kg) |
| Casters | ESD-conductive; 2 locking, 2 non-locking |
| Compatibility | Simco Aerostat® XC2 (mounting hardware supplied with the XC2) |
Options & custom variants
Where our ESD products work
Each unit is designed to be part of an ESD-control system. Performance depends on proper installation, conductive flooring, and facility grounding. Verify resistance-to-ground per your site standard before use.
- Aerospace & defense
- Electronics manufacturing
- Test laboratories
- Cleanrooms & controlled environments
- Semiconductor facilities
- Medical device manufacturing
Need something different?
Dimensions, finishes, and hardware can all be tailored to your workflow. If your facility needs an ESD fixture, stand, cover, or enclosure you can't buy off the shelf, we can design and build it.
Questions about our products?
Ask about specifications, pricing, lead times, or volume orders. We'll get back to you within one business day.
Simco Aerostat® XC2 is a trademark of Simco-Ion; no affiliation implied.
